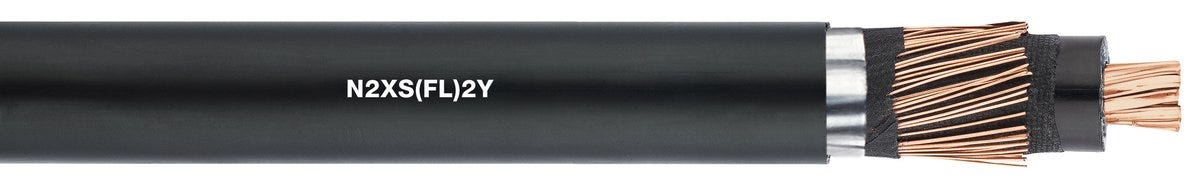

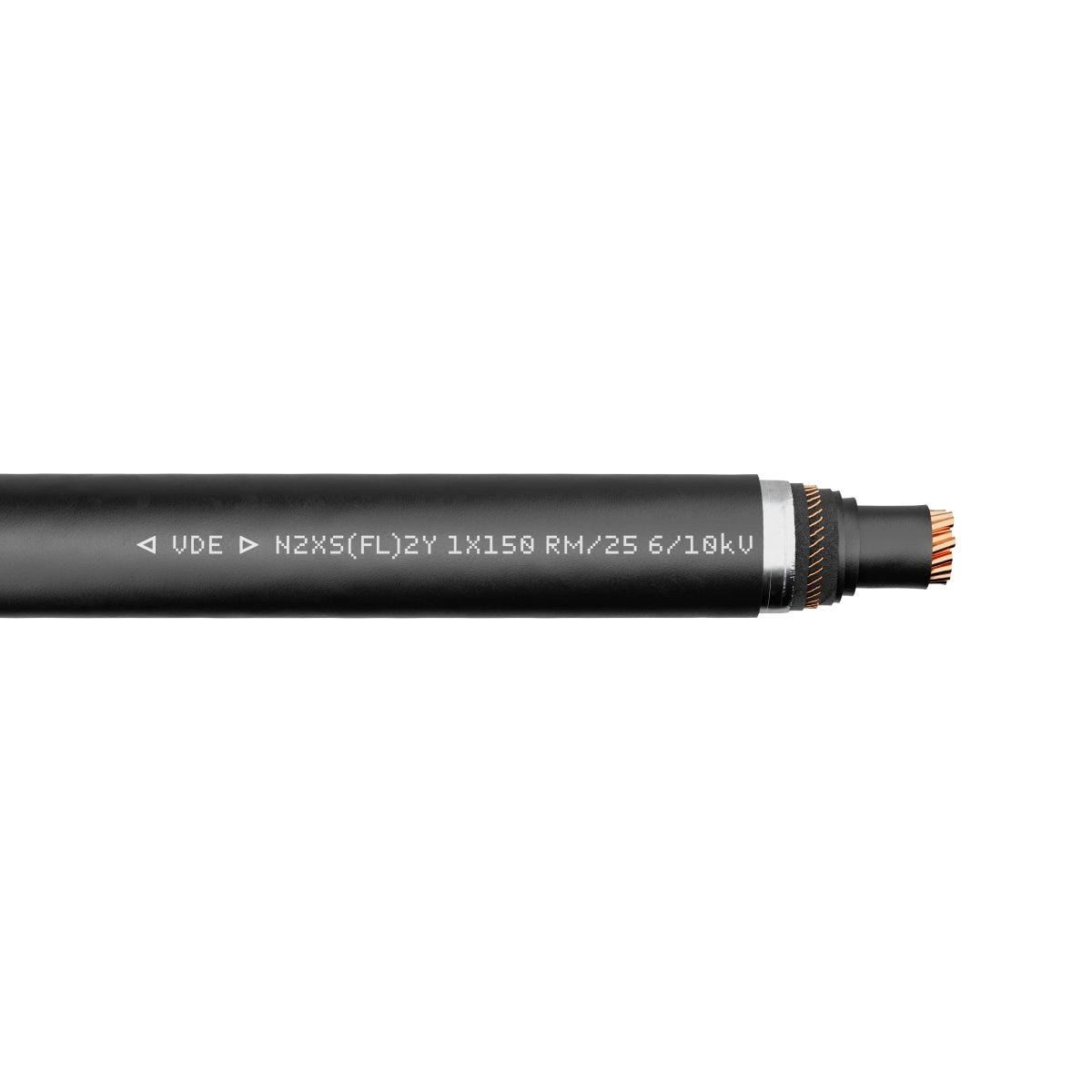

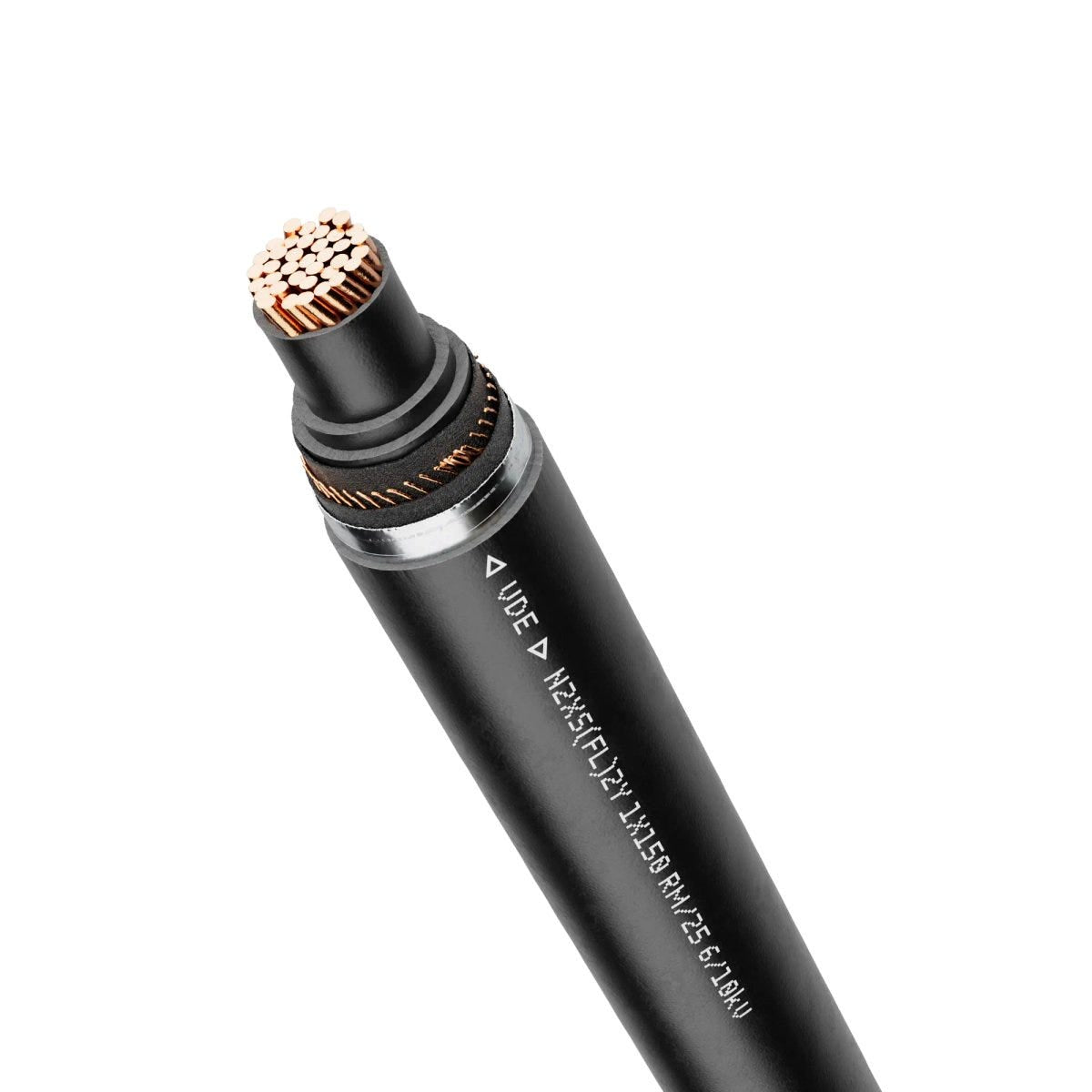

N2XS(FL)2Y 1x150 RM/25 18/30kV

Name: N2XS(FL)2Y 1x150 RM/25 18/30kV
Brand: LAPP
SKU: 38107852
Availability: OutOfStock

Medium-voltage cable; 1x150 RM; U₀/U: 18/30 kV; Bare Copper; PE; Shielded; VDE certified; Fixed Installation

LAPPSKU: 38107852Article No.#: 38107852

N2XS(FL)2Y 1x150 RM/25 18/30kV

Medium-voltage cable; 1x150 RM; U₀/U: 18/30 kV; Bare Copper; PE; Shielded; VDE certified; Fixed Installation

N2XS(FL)2Y 1x150 RM/25 18/30kV

Rp 0,00

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Product characteristics

Certificate

Benefits

VDE-certified cable with ◁VDE▷ testing mark for proven reliability and quality according to VDE 0276-620

Robust during installation and operation thanks to durable PE outer sheath

With additional wrapping to protect against water penetration in the longitudinal direction after mechanical damage

With aluminium PE laminated sheath to protect against water penetration in the lateral direction after mechanical damage

Cross-linked conductive layers above and below the core insulation prevent partial discharges and enable constant operational safety

Available in conductor cross-sections up to 630 mm2

Available in voltage classes 6/10 (12) kV, 12/20 (24) kV and 18/30 (36) kV.

Applications

Suitable for energy distribution in medium-voltage networks

Suitable for use in AC and DC charging infrastructures for electromobility

For fixed installation in water, air and soil. In the ground, the minimum installation depth without additional, suitable underground protection is 0.6 m, and at least 0.8 m under roads (according to HD 620/VDE 0276-620 Part 10-C (point 4))

Also suitable for installation indoors and in closed installation ducts for energy supplier, industrial and distribution networks, but not flame-retardant according to IEC 60332-1-2

Suitable for high mechanical stress due to the PE outer sheath

Suitable for outdoor use

Suitable for use at temperatures up to -40°C.

Technical Attributes

General Information

Product type	Medium-voltage cable
Copper index	1723.000 kg/km
Copper index (lb)	11578.086 lb
Weight	2478 kg/km

Electrical Characteristics

Nominal voltage	U₀/U: 18/30 kV AC rms according to IEC
Max. conductor resistance at 20°C	0.124 Ω/km
Test voltage	45 kV
Current rating according to	VDE 0276-620

Product Design

Conductor abbreviation	1x150 RM
Shape of cable	Round
Outer sheath colour	black
Conductor design	IEC 60228 class 2: multi-wire
Conductor material	Bare copper

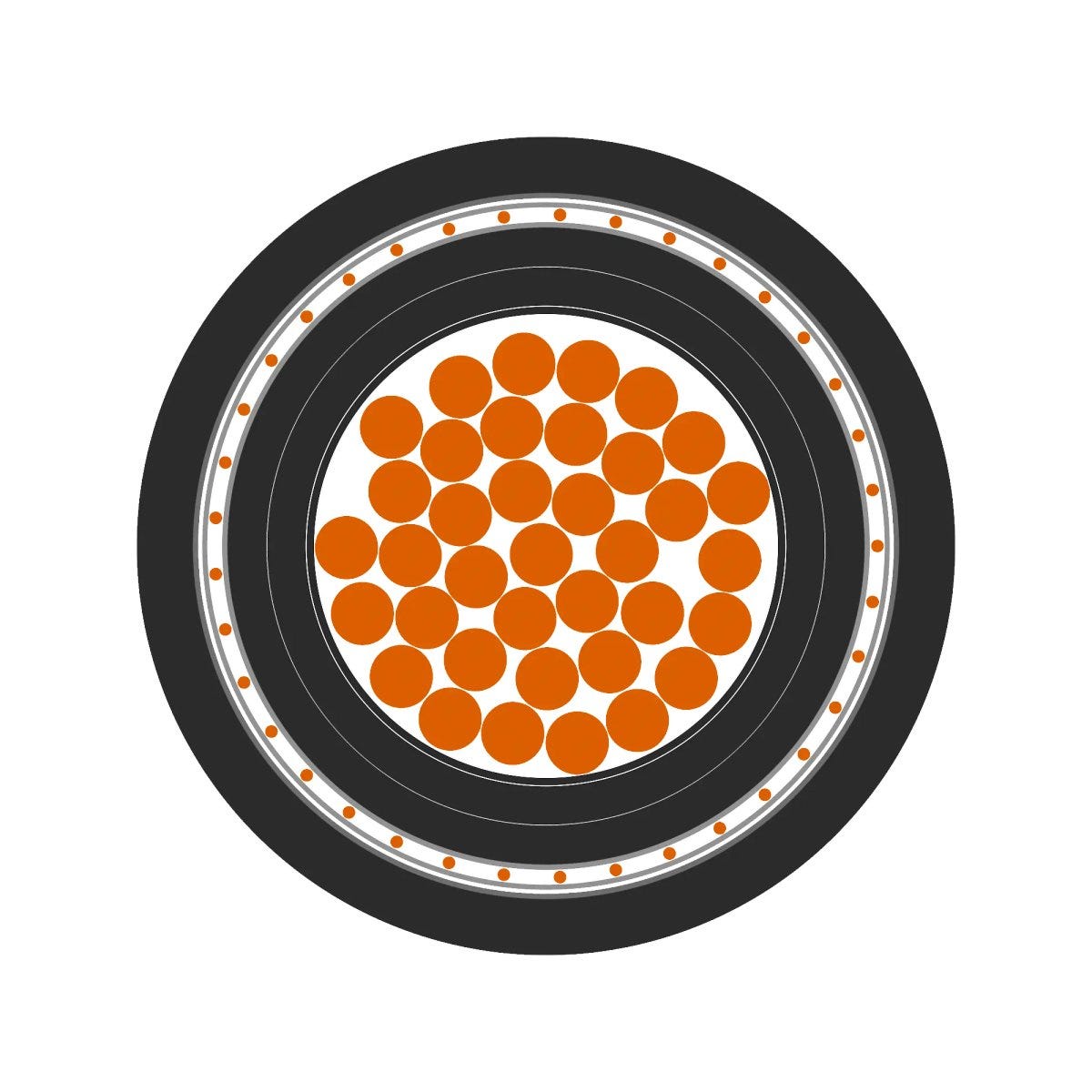

Type of overall screen	Copper wires with cross-conductor copper spiral
Min. outer diameter	38
Conductor shape	Round
Number of cores	1
Nominal conductor cross-section (metric)	150 mm²
Core insulation basic material	Cross-linked polyethylene
N-German standard cables	N2XS(FL)2Y
Conductor count/size	1x150 RM/25
Basic material of outer sheath	Polyethylene
Core insulation basic material, short form	XLPE
Max. outer diameter	44
Shielded
Basic material of outer sheath, short form	PE

Product Characteristics

Flame-retardant
Application area	Fixed installation
Halogen-free according to	IEC 60754-1
Oil-resistant
Longitudinally watertight
Installation temperature min.	-20
UV-resistant
Minimum bending radius, stationary	15 x outer diameter
Laterally watertight
Water resistant
Temperature, fixed installation	-40 °C to 90 °C max. conductor temperature:
Minimum bending radius in mm, fixed installation	660.0 mm
UV-resistant according to	EN 50525-1 (cables with a black sheath are suitable for permanent outdoor use)
Suitable for underground installation	direct, in cable trench, in protective cable conduit
Halogenfree

Certifications and Standards

Product standard VDE	VDE 0276-620
Flame retardance tested according to UN/ECE-R118
CE marked
VDE certified

Documentation

Downloads

Datasheet - de-DE (PDF)

Datasheet - en-UK (PDF)

Notes

Photographs and graphics are not to scale and do not represent detailed images of the respective products.
Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
Trade product, not a LAPP product.

Product Family List

All articles from N2XS(FL)2Y

Article number	Conductor abbreviation	Nominal voltage	Min. outer diameter	Max. outer diameter	Weight
1550991	1x150 RM	U₀/U: 12/20 kV AC rms according to IEC	33	39	2213 kg/km
38106510	1x240 RM	U₀/U: 6/10 kV AC rms according to IEC	33	39	2945 kg/km
38107829	1x35 RM	U₀/U: 6/10 kV AC rms according to IEC	23	28	813 kg/km
38107830	1x50 RM	U₀/U: 6/10 kV AC rms according to IEC	24	29	944 kg/km
38107831	1x70 RM	U₀/U: 6/10 kV AC rms according to IEC	25	31	1170 kg/km
38107832	1x95 RM	U₀/U: 6/10 kV AC rms according to IEC	26	32	1434 kg/km
38107833	1x120 RM	U₀/U: 6/10 kV AC rms according to IEC	28	34	1675 kg/km
38107834	1x150 RM	U₀/U: 6/10 kV AC rms according to IEC	29	35	2020 kg/km
38107835	1x185 RM	U₀/U: 6/10 kV AC rms according to IEC	31	37	2391 kg/km
38107836	1x300 RM	U₀/U: 6/10 kV AC rms according to IEC	36	41	3543 kg/km
38107837	1x400 RM	U₀/U: 6/10 kV AC rms according to IEC	38	45	4450 kg/km
38107838	1x500 RM	U₀/U: 6/10 kV AC rms according to IEC	41	48	5455 kg/km
38107839	1x630 RM	U₀/U: 6/10 kV AC rms according to IEC	44	54	6814 kg/km
38107840	1x35 RM	U₀/U: 12/20 kV AC rms according to IEC	27	32	963 kg/km
38107841	1x50 RM	U₀/U: 12/20 kV AC rms according to IEC	28	33	1100 kg/km
38107842	1x70 RM	U₀/U: 12/20 kV AC rms according to IEC	30	35	1336 kg/km
38107843	1x95 RM	U₀/U: 12/20 kV AC rms according to IEC	31	36	1609 kg/km
38107844	1x120 RM	U₀/U: 12/20 kV AC rms according to IEC	32	38	1860 kg/km
38107845	1x185 RM	U₀/U: 12/20 kV AC rms according to IEC	35	41	2595 kg/km
38107846	1x240 RM	U₀/U: 12/20 kV AC rms according to IEC	38	44	3163 kg/km
38107847	1x300 RM	U₀/U: 12/20 kV AC rms according to IEC	40	46	3776 kg/km
38107848	1x400 RM	U₀/U: 12/20 kV AC rms according to IEC	43	49	4682 kg/km
38107849	1x500 RM	U₀/U: 12/20 kV AC rms according to IEC	46	52	5726 kg/km
38107850	1x630 RM	U₀/U: 12/20 kV AC rms according to IEC	48	57	7103 kg/km
38107851	1x95 RM	U₀/U: 18/30 kV AC rms according to IEC	35	41	1852 kg/km
38107852	1x150 RM	U₀/U: 18/30 kV AC rms according to IEC	38	44	2478 kg/km
38107853	1x300 RM	U₀/U: 18/30 kV AC rms according to IEC	45	51	4087 kg/km
38107854	1x400 RM	U₀/U: 18/30 kV AC rms according to IEC	48	54	5016 kg/km
