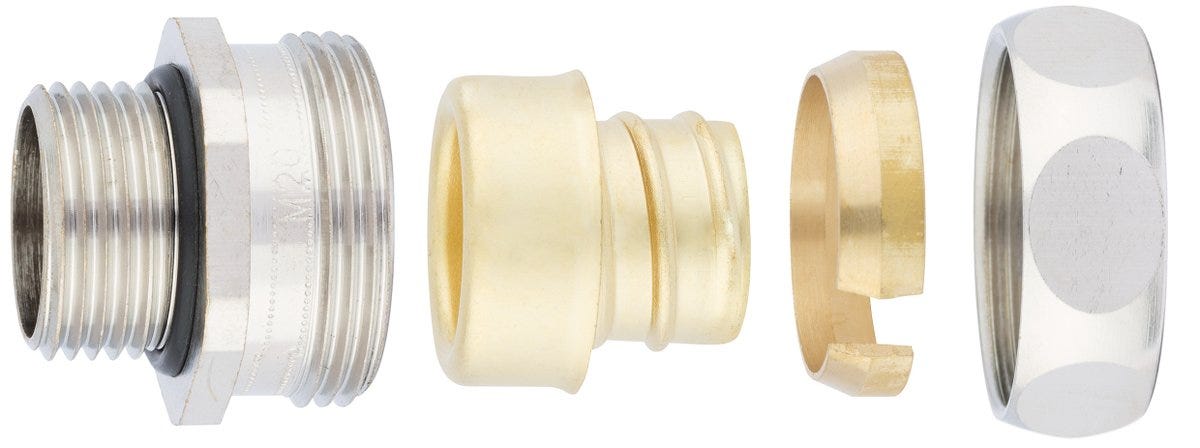

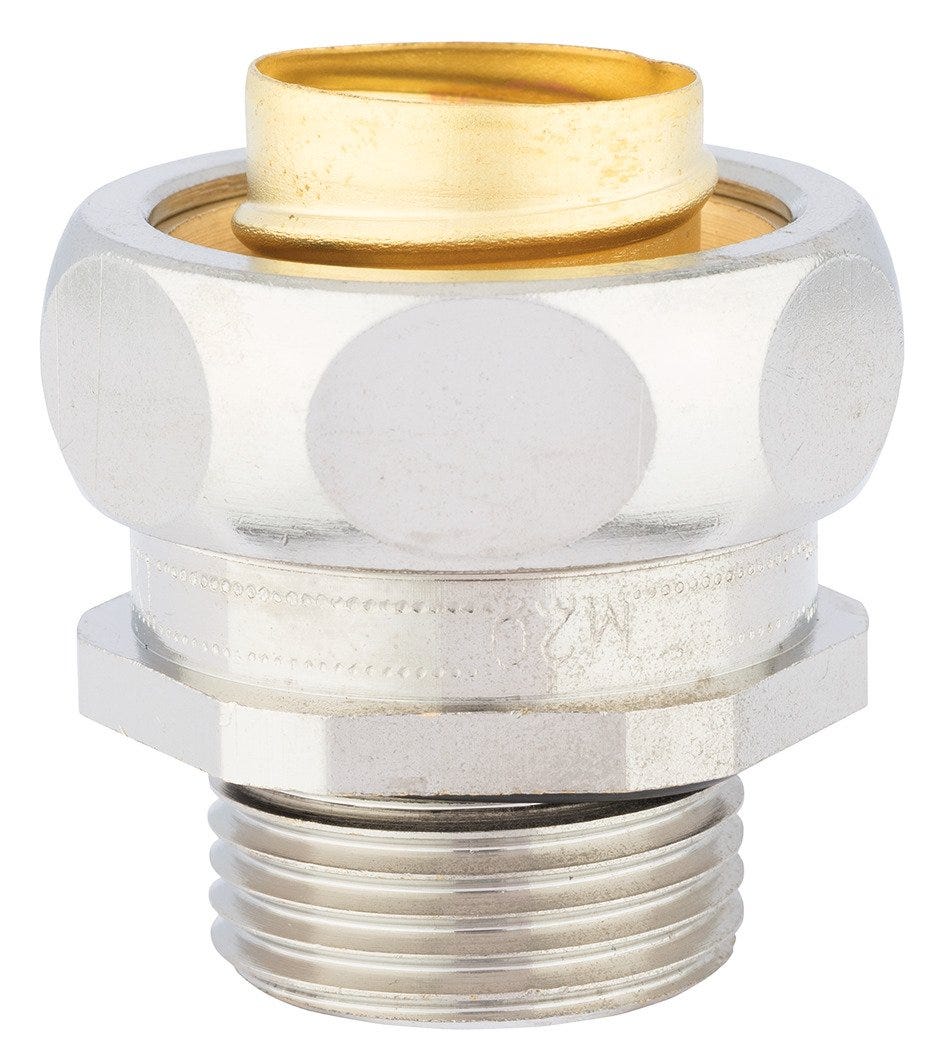

SILVYN® US PG 13.5 FPS-EDU
Conduit gland; PG 13,5; Nominal size: 19; Brass Nickel-plated; Halogenfree; UV-resistant; IP 54;
SILVYN® US PG 13.5 FPS-EDU
Rp 0,00
/
SILVYN® US PG 13.5 FPS-EDU
Rp 0,00
/
Pembayaran & Keamanan
Informasi pembayaran Anda diproses dengan aman. Kami tidak menyimpan detail kartu kredit dan tidak memiliki akses ke informasi kartu kredit Anda.
Product characteristics
heat resistance
cold resistance
flame-retardant
halogen-free
oil resistant
chemical resistance
uv-resistant.
Certificate
CE marked
Manfaat
High tensile strength, Space-saving, Fast and easy assembly, Vibration protection, All-purpose
Aplikasi
In combination with protective conduit:, SILVYN FPS-EDU, Mechanical engineering, Plant engineering
Atribut Teknis
Informasi Umum
| Brand | SILVYN® |
| Including lock nut |
|
| Including o-ring |
|
| Installation type | in threaded borehole |
| Product type | Conduit gland |
| Scope of delivery | including O-ring |
| Packaging type | Bag |
| Delivery Unit | 50.000 |
| Weight | 0.055 kg |
Karakteristik Kelistrikan
Desain Produk
| Bending protection fixed installation |
|
| Flexibly installed bending protection |
|
| Bending protection |
|
| Clear width | 13 |
| Conduit gland design | Straight |
| Divisible fitting |
|
| EMC screening |
|
| Hexagon corner dimensions | 29 |
| Spanner size | 25 |
| Inner diameter | 13 |
| Lockable (two-part) |
|
| Material body | Brass |
| Material body shortname | CuZn |
| Gland body material | Brass |
| Cable gland body material, short form | CuZn |
| Insert material | Brass |
| Insert material, short form | CuZn |
| O-ring material | Acrylonitrile butadiene rubber |
| O-ring material, short form | NBR |
| Sealing material | Thermoplastic elastomers |
| Sealing material, short form | TPE |
| Nominal size | 19 |
| Outer diameter | 29 |
| Pitch of thread | 1,41 |
| Rotatable thread |
|
| Surface protection | Nickel-plated |
| Thread length | 7 |
| Thread size | PG 13,5 |
| Total length | 30 |
| Spanner size 1 | 25 |
| Spanner size 2 | 27 |
Karakteristik Produk
| IP-protection class cable side | IP 54 |
| IP protection rating | IP 54 |
| Acid-resistant |
|
| Chemical resistant |
|
| Flame-retardant |
|
| Halogenfree |
|
| Impact-resistant |
|
| Oil-resistant |
|
| Suitable for EX-applications |
|
| UV-resistant |
|
| Vibration protection |
|
Sertifikasi dan Standar
| CE marked |
|
| CSA certified |
|
| cUL listed |
|
| cUR recognized |
|
| DNV-certified |
|
| Ecolab certified |
|
| EHEDG certified |
|
| FDA certified |
|
| GGVS certified |
|
| NSF certified |
|
| Product standard according to IEC | IEC 61386-1, IEC 61386-23 |
| Tested for fire protection for railway vehicles |
|
| UL listed |
|
| UL recognized |
|
| VDE certified |
|
Dokumentasi
Downloads
Notes
- Photographs and graphics are not to scale and do not represent detailed images of the respective products.
- Unless specified otherwise, the product values shown are rated values at room temperature. You can receive further values, such as tolerances, upon request if they are available and have been released for publication.
